Toyota Tundra Infotainment Installation: A Real-World Guide to Fitment, Factory Controls, and Final Testing

A modern infotainment display can change how a Toyota Tundra feels every day, but a successful upgrade begins long before the new screen turns on. The real work is matching the product to the exact truck, understanding the original dashboard and audio system, protecting the interior during disassembly, organizing the harness, testing every required function, and fitting the assembly without forcing it into place.

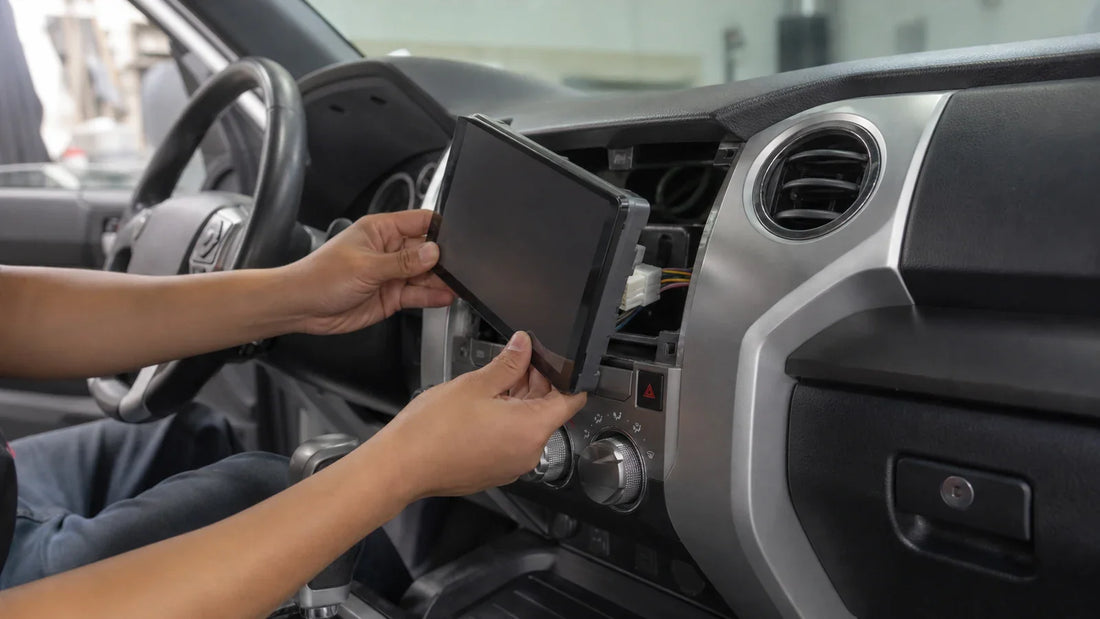

The ZENHAX installation footage reviewed for this article shows hands-on work inside a Toyota Tundra: the center-stack area is opened, parts are handled on a protected work surface, connectors are prepared, the replacement assembly is positioned, and the installed display is checked. The footage is valuable because it shows the practical middle of the job rather than only a finished screen. It does not, however, independently identify the truck's model year, trim, factory radio, amplifier, or camera configuration.

The current ZENHAX product page discussed below is specifically listed for Toyota Tundra 2014-2021. That catalog range must not be used to guess the identity of the truck in the video. A product range and a video scene are two separate pieces of evidence. Before ordering, compare the actual dashboard and factory equipment with the current product page and ask for a fitment review when anything is uncertain.

This article is an installation-planning guide, not a replacement for vehicle service information or the instructions supplied with a product. Fasteners, clips, airbag precautions, electrical behavior, factory amplifiers, camera systems, and retained features can vary. Work around vehicle safety systems only with appropriate training, and choose a qualified installer if you are not comfortable with automotive electrical and trim work.

Identify the truck before selecting the screen

“Toyota Tundra” is a starting point, not a complete fitment description. Record the model year, cab and trim information, left- or right-hand-drive configuration, original radio appearance, factory amplifier status, camera equipment, steering-wheel controls, and any premium-audio branding. Note whether the dashboard or wiring has been modified. A used truck may contain an aftermarket radio, spliced wires, an added amplifier, or a camera that does not match the factory configuration.

Take a complete dashboard photograph from between the front seats, then take a straight-on image of the original radio, climate controls, vents, and surrounding fascia. Do not crop away the parts that seem unrelated. The outer trim shape, control arrangement, button locations, and vent geometry are often what distinguish one configuration from another. If the original radio has a model label that can be photographed safely, include it.

A listing that says 2014-2021 still requires configuration verification. A long year range can include changes in connectors, amplifiers, cameras, trim panels, software, and regional equipment. The correct question is not “Does it fit a Tundra?” It is “Does this exact product and harness package support the equipment in this exact Tundra?” That distinction prevents a large-screen specification from overshadowing the mechanical and electrical facts.

Jason uses a simple rule when reviewing a vehicle: begin with evidence that cannot be created by a marketing sentence. A clear dashboard image, the original system details, and photographs of previous modifications are more useful than a customer saying the truck is “standard.” If support asks for another angle or a connector photo, the request is intended to resolve a real fitment variable, not to delay the order.

What the current Tundra product page represents

The current ZENHAX catalog page presents an 11.5-inch vehicle-specific infotainment system for Toyota Tundra 2014-2021. The page describes the display, operating platform, phone connectivity, audio capabilities, camera support, and vehicle-related functions for the supported application. Read those details as product-page specifications tied to the listed configuration, not as a promise that every truck in the year range has the same original equipment.

The product image shows more than a screen. The fascia and control structure around the display are part of the installation system. Their contours must meet the dashboard correctly, their mounting points must align, and any transferred or integrated controls must operate without interference. A universal tablet with the same diagonal measurement would not solve those mechanical requirements.

Availability and included components can change, so review the live product page at the time of purchase. Confirm what is included in the package, which vehicle-side connectors are supported, and whether an interface, microphone, antenna adapter, USB extension, or camera accessory is part of the order. Do not assume that an item appearing in a demonstration or an older image is included if the current package list does not identify it.

Why the fascia is an engineering component

The Tundra center stack is a visible structure that also holds controls, vents, switches, and the radio assembly in a precise relationship. A replacement fascia has to meet the surrounding surfaces evenly while providing adequate support for a larger display. If the fascia is slightly wrong for the truck, the problem can appear as a corner gap, a blocked control, an unstable screen, a clip that will not engage, or a mounting hole that cannot be reached.

Before removing the original equipment, place the new assembly beside the dashboard and compare the outer profile, control layout, vent relationship, and mounting features that are visible. This comparison does not prove electrical compatibility, but it can reveal an obvious mechanical mismatch. Stop if the shape is inconsistent. Modifying the dashboard to make a questionable product fit can turn a reversible installation into permanent damage.

During assembly, never use screws to pull a misaligned fascia toward the dashboard. A screw should secure parts that are already correctly positioned; it should not bend plastic, compress a trapped cable, or force a bracket past an obstruction. If one side sits proud, remove the assembly and find the cause. Common causes include a harness bundle behind the display, a transferred component installed in the wrong orientation, a missed locating tab, or an incorrect bracket position.

Prepare the cabin and the work area

Park on a level surface, set the parking brake, remove loose objects from the cabin, and protect the seats, console, and painted trim. Use clean towels or nonabrasive covers. Dust trapped beneath a removed panel can scratch a glossy surface, and a metal tool placed on the console can cause damage before the electrical work begins.

Review the correct battery-disconnection procedure and any consequences described in reliable vehicle service information. Depending on the truck, disconnecting power can affect stored settings or require specific precautions. Never probe or disconnect airbag or safety-system wiring without proper training. If the installation route passes near an airbag or its deployment path, stop and use a qualified professional.

Prepare plastic trim tools, correct sockets and screwdrivers, a magnetic tray or labeled containers, good lighting, and a phone or camera for documentation. Keep fasteners grouped by the panel they came from. Similar-looking screws can have different lengths, and a long screw installed in the wrong hole may contact a hidden component.

Open the product package before touching the dashboard. Compare the contents with the current package information and instructions. Identify the display, fascia, main harness, interface modules, antenna path, USB leads, microphone, camera inputs, and optional connections. If a required component appears missing or damaged, resolve that question while the original radio still works and the truck remains fully assembled.

Remove trim in the documented order

Dashboard trim is designed to release in a sequence. Begin at the specified point, use steady pressure, and watch the gap as it opens. A panel that releases on one corner may still be held by a hidden screw or a connector on the other side. Increasing force without identifying the restraint can break a clip or crease a visible surface.

Use plastic tools where appropriate and avoid levering against a fragile edge. If a clip will not release, change the angle and inspect the area with a light. Never treat a service video for a different year or trim as proof of the fastener locations in this truck. The general technique may be helpful, but the vehicle-specific removal path controls the job.

As a panel moves forward, look behind it before carrying it away from the dashboard. Switches, climate-control connections, lighting, and other components may still be attached. Support the panel so its weight is not hanging from wires. Release connectors by their locking mechanism rather than pulling the harness. Photograph every original connection before separating it.

Place removed parts on a padded surface in the order they came out. If vents, switches, controls, or brackets must be transferred to the new fascia, photograph their orientation and fastener positions first. Start screws by hand, tighten them evenly, and stop when the component is secure. Plastic mounting posts can crack if a screw is driven at an angle or overtightened.

Map the harness before plugging anything in

A matched harness is intended to create an organized connection path between the supported truck and the new system. It does not mean that every connector in the package is used in every Tundra. Lay the harness out on a clean surface and identify each labeled branch. Separate required connections from optional camera, amplifier, USB, microphone, antenna, or accessory leads.

Compare connector keying, pin count, lock design, labels, and instructions. Two plugs that look similar can carry different signals or voltages. Never shave a key, force a latch, move terminals, or join wires based only on color unless an authorized vehicle-specific instruction requires it. A no-cut installation path is valuable precisely because it avoids speculative electrical changes.

Plan where each module and cable will rest after the display moves into the opening. Keep wiring away from sharp edges, mounting screws, air ducts, control mechanisms, and areas that become hot. Use natural loops rather than sharp folds. Leave a service loop that allows the display to be supported and removed later without pulling on a connector.

Do not tighten cable ties until the assembly has been test-fitted. A bundle that looks neat on the workbench may place a large knot behind the deepest part of the display. Overly tight ties can compress wires and transfer vibration directly to a connector. Secure modules so they cannot rattle, but do not bury an interface where its label, reset procedure, or service connection can never be reached.

Factory audio changes the connection plan

A Tundra with a factory amplifier may require a different signal path from a basic-audio truck. Premium branding, speaker count, original-radio information, and connector photos help identify the system, but use the product documentation and fitment support for confirmation. Do not assume that the presence of sound after startup proves the amplifier integration is correct.

During testing, use balance and fade to listen to each expected speaker position. Check for missing channels, weak output, excessive volume at the lowest setting, distortion, hiss, or a pop during startup and shutdown. Start with neutral equalizer settings and moderate volume. Heavy bass or loudness settings can hide an imbalance and place unnecessary stress on the system during the first test.

Test more than one source. Radio, Bluetooth audio, phone projection, and local media may behave differently. If only one source has a problem, the cause may be a setting, application, phone, or data connection rather than the amplifier. Record which source, volume level, and speaker position reveal the symptom.

Test the display before final mounting

Once the required connections are made and the vehicle is safe to power, support the assembly on a padded surface. Do not let the display hang by its harness. Confirm startup and shutdown behavior, touch response, audio, and the basic interface. Check that the system responds normally through at least one ignition cycle according to the product instructions.

Work through the prewritten function-retention list. Typical items may include steering-wheel buttons, each speaker position, Bluetooth calling, microphone clarity, phone projection, USB data, USB charging, radio reception, reverse-camera behavior, and any supported vehicle or climate display. Test only functions actually present in the truck and included in the supported product configuration.

Do not close the dashboard simply because the home screen appears. A successful boot proves only that part of the power path is working. An untested camera, microphone, or rear speaker can turn a clean installation into a second disassembly. Mark each required function as confirmed, not present, outside the order, or needing follow-up.

Steering-wheel controls require deliberate verification

If steering-wheel controls are part of the confirmed configuration, test each button separately. Volume up, volume down, track change, mode, voice, and phone buttons may depend on an interface and the correct vehicle profile. A button that performs the wrong action does not automatically mean the steering wheel is defective. Confirm the connection and documented settings before changing anything.

Do not assign critical actions carelessly or test while driving. Perform setup with the truck stationary. After mapping or configuration, turn the system off and on as directed and repeat the test. Record any button that is not part of the supported set instead of promising that every factory action can be duplicated.

Phone projection should be tested as a system

For wireless CarPlay or Android Auto, use a compatible phone, enable the required Bluetooth and Wi-Fi permissions, and follow the product pairing sequence. Remove obsolete pairings if they interfere. Test music, navigation instructions, a stationary call, voice assistance, and reconnection after an ignition cycle. Note the phone model and software version if support is needed.

For wired operation, use a known-good data cable. Many cables charge but do not carry reliable data. Identify which USB lead is intended for phone projection and which may be power-only. Route the extension where it will not be pinched by the glove box, center console, or trim. Before final assembly, gently move the cable at its accessible end and confirm that the connection remains stable.

Wireless performance depends on antenna placement, the phone, and the local radio environment. Do not trap an antenna behind a metal bracket or wrap it into a dense power-harness bundle unless the instructions specify that location. If the connection drops, document the application in use, whether audio continued, and whether wired operation remains stable.

Camera checks must remain safety-focused

Test the reverse camera in a controlled area with the truck stationary and a second person assisting when appropriate. Confirm trigger timing, image stability, and orientation. Guidelines displayed on the screen may be fixed or may depend on supported vehicle data. They are not a measured guarantee of the truck's path, and the driver remains responsible for direct observation.

Factory-camera retention depends on the original signal, camera voltage, interface, and configuration. An aftermarket camera introduces separate power and routing decisions. Never apply power based only on wire color, and never assume that a video connector supplies the correct voltage. Follow verified instructions and use a qualified technician when measurement or conversion is required.

If the camera does not work, distinguish between a screen that never switches, a screen that switches but shows no image, and an image that appears intermittently. Those symptoms point toward different parts of the trigger, video, power, or connection path. Photograph the labeled connections and current settings before changing them.

Fit the assembly without trapping the harness

Look into the radio opening and identify the available cavities before moving the display into position. Arrange modules in protected areas and spread the harness so it does not form one large bundle behind the deepest part of the screen. Move the assembly slowly while watching how the cables fold. Stop immediately if unusual force is needed.

If the screen does not sit at the correct depth, pull it forward and inspect. Do not tighten mounting screws to pull it into place. Check for a trapped connector, a module lying across a bracket, an incorrectly transferred control, or a cable loop entering a clip opening. Correcting the cause protects both the fascia and the connector terminals.

Once the assembly sits naturally, align clips and start fasteners by hand. Tighten evenly to the appropriate tension. Check the perimeter for consistent gaps and operate nearby vents, climate controls, hazard switches, and storage areas. A finished dashboard should not require pressure on one corner to keep it closed.

Repeat the test after the screen is mounted

A connection can behave correctly while the screen is supported and fail after the harness is compressed into the dashboard. Repeat the essential function checklist after mounting and before locking every decorative panel. Check audio channels, steering-wheel controls, microphone, phone projection, USB, camera trigger, physical controls, and startup and shutdown behavior.

Listen for a new rattle while gently pressing around the installed fascia. A loose module may not be visible, but it can become distracting on rough roads. Do not insert foam or adhesive blindly around hot components or air ducts. Remove the assembly and secure the actual source in an appropriate protected location.

Look for warning lights and address them according to correct service information. Do not clear a warning merely to create a clean dashboard photograph. If a safety-system connector was disturbed or a warning appeared, the vehicle needs proper diagnosis before it is driven.

Use an evidence-based troubleshooting method

When a function fails, describe the symptom precisely. “The radio is broken” is difficult to diagnose. “The display starts, Bluetooth audio works, but the front-left speaker is silent on every source” narrows the problem. Record when the issue began, whether it changes with an ignition cycle, and which functions still work.

Check the simplest documented causes first: fully seated connectors, correct input selection, mute and balance settings, phone permissions, and the applicable vehicle profile. Change one variable at a time and retest. Randomly moving several plugs or settings can hide the original cause and introduce a second problem.

Take photographs of connector locks, interface labels, relevant settings, and the full harness layout. Do not send only an extreme close-up with no context. A useful support set includes one overview and focused images of the suspected path. If a video demonstrates an intermittent symptom, keep it short and show the action that triggers the problem.

Contact service@zenhax.email with the order information, product link, truck details, symptom, test results, and photographs. Do not cut, repin, or modify the harness while waiting for guidance unless the authorized instructions specifically require that action. Preserving the original state makes diagnosis and any return or replacement process clearer.

Common Tundra upgrade mistakes

Choosing by screen size

Two displays can share the same diagonal measurement while using completely different fascias, brackets, connectors, and interfaces. Select by the supported truck configuration, not by inches alone.

Assuming every truck in a year range is identical

Trim, audio, camera, region, and previous modifications matter. The product range is a filter, not the entire fitment decision.

Forcing trim or connectors

Resistance is information. A hidden screw, misaligned clip, trapped cable, or wrong connector should be investigated before force damages a part.

Testing only the touchscreen

The screen can work while a speaker, microphone, camera, steering-wheel button, or USB data path does not. Use a written checklist before and after final mounting.

Hiding unsupported promises inside the word “factory”

A vehicle-specific appearance does not guarantee retention of every original feature. Confirm the exact functions that matter and how the supported interface handles them.

A complete pre-order checklist

• Vehicle model year, trim, steering position, and region.
• Clear overview and close-up photographs of the complete center stack.
• Original radio appearance and any readable model information.
• Factory amplifier or premium-audio information.
• Factory or aftermarket camera information.
• Required steering-wheel, audio, camera, USB, and phone functions.
• Details and photographs of any previous radio or wiring modification.
• The exact current ZENHAX product link being considered.

This checklist is intentionally practical. It does not ask the customer to identify an unknown connector by guesswork or remove safety-system wiring. It gathers the evidence needed to compare the truck with a supported configuration. If one item cannot be confirmed, state that clearly so support can decide whether another photograph or installer inspection is needed.

A complete installation handover

At the end of the job, clean the screen with an appropriate cloth, count tools and fasteners, secure every panel, and confirm that no wire or module can move freely behind the dashboard. Demonstrate phone pairing, audio controls, the supported camera behavior, and the documented restart procedure. Explain which USB connection carries data and which functions depend on the customer's phone.

Save the product name, order number, vehicle details, before-and-after photographs, connector images, interface labels, and completed function checklist. Record any settings changed for the vehicle profile, steering-wheel controls, camera, or amplifier. This service record gives the owner and future technician a reliable starting point if the truck is upgraded again.

Do not promise that every future phone, application update, or accessory will behave exactly like the tested setup. The responsible handover explains what was tested today and how to request help with evidence if behavior changes later.

The goal is a matched installation path

The best Toyota Tundra upgrade is not defined by the largest screen or the shortest installation video. It is a matched system in which the fascia belongs in the dashboard, the harness follows the supported electrical path, the required functions are verified, and the assembly remains serviceable. The actual ZENHAX footage shows why careful hands, organized parts, and staged testing matter.

Begin with the exact truck. Compare the complete center stack. Confirm the factory audio and camera equipment. Organize the harness before powering the unit. Test every required function while the assembly is accessible, then test again after mounting. Those habits make a vehicle-specific product useful in the real world and give both the owner and the support team a clear basis for solving any later question.
