Jeep Dashboard Upgrades: What Wrangler and Cherokee Installations Teach About Fitment, Harnesses, and Testing

A Jeep dashboard upgrade is often presented as a quick transformation: remove the original radio, connect a new screen, reinstall the trim, and enjoy a modern interface. The short before-and-after videos make that sequence look effortless because they compress the careful work in the middle. Real installation depends on the exact vehicle, the original center-stack structure, the factory audio configuration, the harness path, and the functions the owner expects to retain.

The ZENHAX video library reviewed for this article includes hands-on work in two different Jeep interiors. One sequence shows a Wrangler center stack with its distinctive round vents and removable trim. Another shows a Cherokee installation in which the vent assembly, dashboard opening, harness connections, and replacement display must be handled as a coordinated system. The videos are useful because they show actual disassembly and assembly rather than a generic screen floating in a studio image.

This is not a universal step-by-step service manual. Fastener locations, airbag precautions, trim clips, connector locks, factory amplifiers, cameras, and radio options can vary. Always use the instructions for the purchased product and appropriate vehicle service information. If you are not trained to work around vehicle electrical and safety systems, use a qualified installer.

Start with the exact Jeep, not the screen size

The strongest buying decision begins with the vehicle configuration. "Jeep" is not a fitment. "Wrangler" or "Cherokee" is still not enough. The team needs the year, trim, regional version, steering position, factory radio, amplifier information, camera information, and a clear view of the dashboard. A previous aftermarket installation also matters because it may have changed connectors, wiring, brackets, or trim.

The current ZENHAX catalog includes separate vehicle-specific listings for the Jeep Cherokee 2014-2021 and Jeep Wrangler 2011-2017, as well as a different listing for later Wrangler JL applications. Those products are not interchangeable merely because they share a screen size or operating platform. Their fascias, mounting points, vents, harnesses, and integration requirements are different.

Jason often begins a fitment review with a dashboard photo rather than a promise. That is the correct instinct. A photograph can quickly reveal a different center stack, vent layout, climate-control arrangement, or previous modification. It cannot answer every electrical question, but it prevents the most obvious mismatch before an order is placed.

What the installation footage actually shows

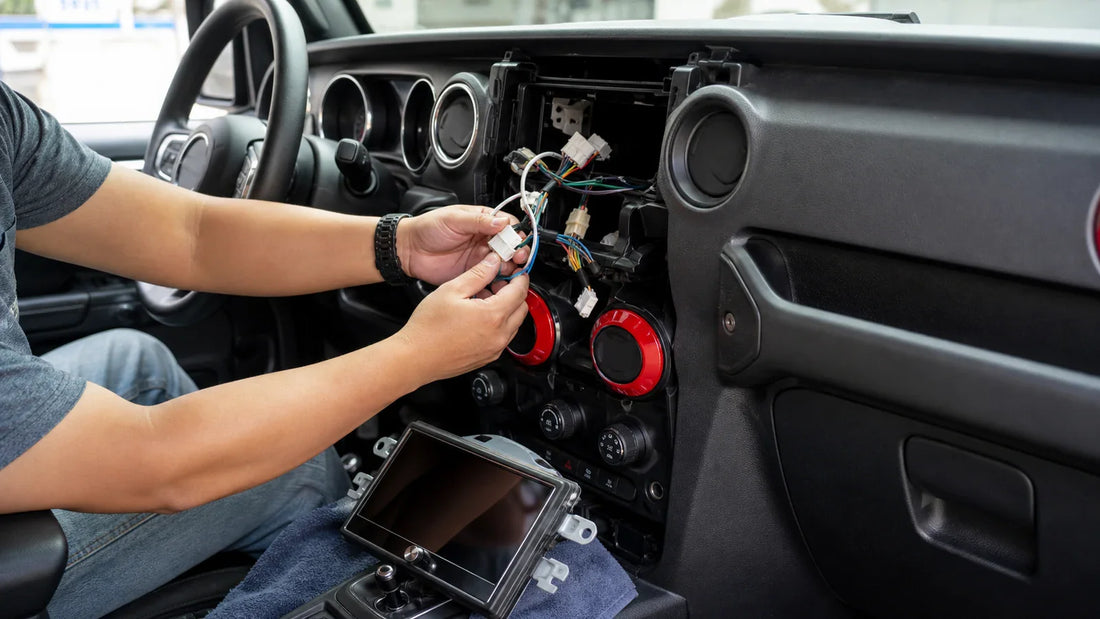

The Wrangler footage shows the center trim being released, the original radio opening exposed, connector groups handled, the replacement assembly supported during connection, and a before-and-after result. The Cherokee footage shows careful removal around the center vents, work on the back of the trim assembly, harness connection, display positioning, and the finished center stack. These are different dashboards, but they reveal the same installation principles.

First, trim should be removed in a controlled order. Pulling on the most visible edge is not always the correct first move. Clips can release unevenly, hidden screws may remain installed, and wires may still connect switches or controls. A plastic trim tool helps reduce surface damage, but the tool does not replace knowledge of the panel structure.

Second, the removed assembly needs support. A panel hanging by one connector can damage the connector, scratch the console, or put stress on a control module. The video shows hands supporting the work rather than allowing parts to swing freely. A clean towel or padded surface protects both the vehicle and the new display while connectors are identified.

Third, connection work is easier when the harness is organized before the screen is positioned. Plugging in one cable at a time without understanding the complete path can leave a module trapped behind the wrong area or place a connector where the screen body needs to sit. Lay out the supplied harness, identify the vehicle-side plugs, head-unit-side plugs, interface box, antenna path, USB extensions, camera inputs, and any optional leads before connecting them.

The Jeep Cherokee product path

The current Cherokee product page lists an 11.5-inch vehicle-specific unit for 2014-2021. It describes a complete screen and installation package rather than a universal tablet. The product listing identifies the operating platform, screen, connectivity, audio, camera support, and retained functions for the supported configuration. These are product-page specifications, not a statement that an unknown Cherokee automatically has every compatible factory option.

The Cherokee video makes the mechanical relationship clear. The screen is only one piece. The vent and trim structure around it determines how the assembly meets the dashboard. During removal, the installer works around the center opening and then accesses the reverse side of the trim. During installation, the display is supported while connectors are routed behind it. The final result depends on that entire structure sitting correctly, not on the screen lighting up.

Before ordering the Cherokee product, compare the complete center stack, not just the original display opening. Check the side vents, lower controls, hazard-switch area, trim outline, and any factory labels. Tell support whether the vehicle has a factory amplifier and reverse camera. If the vehicle has already been modified, include photos of the wiring behind the original radio. Those details influence the connection plan and the functions that can reasonably be confirmed.

The Jeep Wrangler product path

The Wrangler center stack in the video is visually distinct. Round vents flank the radio area, and the surrounding trim forms a strong part of the cabin's character. The upgrade has to respect that geometry. A large display may modernize the interface, but it should not block a vent, interfere with physical controls, or depend on a fragile improvised mount.

The current Wrangler 2011-2017 listing describes an 11.5-inch complete unit and included connection components for the supported configuration. It lists retention and camera-related functions on the product page. A buyer should still confirm the factory radio, steering-wheel controls, amplifier, camera, and any previous wiring work. Jeep owners frequently modify their vehicles, so an otherwise correct year range may not describe what is currently behind the dashboard.

The Wrangler footage also highlights space management. A screen and fascia may occupy more volume than the original radio, while the harness and interface still need protected space behind the assembly. Pushing the unit into place while cables are folded randomly can unseat a connector or create pressure on the screen. Organize the harness into natural loops, keep modules away from sharp metal and moving controls, and confirm that the assembly can sit without abnormal force.

Safe preparation before trim removal

Park the vehicle on a level surface, set the parking brake, remove the key or disable the ignition as instructed, and protect painted and soft-touch surfaces. Review the vehicle service information for battery-disconnection steps and any retained-accessory-power, security-code, window, steering-angle, or other reset considerations. Work around airbags and safety-system wiring only with appropriate training.

Prepare plastic trim tools, the correct screwdrivers or sockets, a magnetic tray or labeled containers for fasteners, a clean towel, lighting, and a way to photograph each connector before disconnection. Do not place screws loose on the seat or console. Different lengths may belong in different locations, and installing a long screw where a short one belongs can damage hidden components.

Before the dashboard is opened, confirm that the new package matches the order. Compare the fascia shape, identify the display, harness, interface box, USB and antenna accessories, microphone, camera leads, tools, and instructions. If the product photo shows a component that is not in the package, stop and contact support. It is easier to resolve a packing question while the original radio is still installed.

Trim removal without turning clips into damage

Use the vehicle-specific removal order. Begin at the designated release point and apply steady, distributed pressure. A clip that does not release may be near a hidden fastener. Do not increase force simply because a panel moved on the other side. Watch the gap as it opens and use more than one trim tool when needed to prevent a released clip from locking again.

As the panel comes free, look behind it before moving it far. Switches, vents, climate controls, or lighting may still be attached. Release connector locks by their intended tabs, not by pulling the wires. If a connector resists, inspect it with a light and compare it with the instructions. Some locks slide, rotate, or lift before the plug can separate.

Place each removed piece on a protected surface in the order it was removed. Photograph any transferred components and fastener positions. If factory vents or controls must move into the new fascia, compare mounting tabs and orientation before tightening. Plastic tabs can be damaged by a screw driven at the wrong angle or tightened beyond the point needed to hold the part.

Harness planning: the difference between matched and messy

A clean no-cut strategy uses the supported vehicle connectors and a matched harness. That does not mean every supplied plug is used on every trim. Identify the path from the Jeep to the interface and from the interface to the display. Optional camera, amplifier, USB, microphone, or accessory leads should be connected only as the instructions and confirmed configuration require.

Never decide that two connectors match only because they can be pushed together. Compare keying, pin count, wire path, label, and documentation. Do not shave a key, force a latch, or move pins without authorized instructions. A connector designed for one signal can physically resemble another while carrying different voltage or data.

Once the correct path is established, route the harness away from mounting screws, sharp edges, air ducts, control linkages, and moving panels. Support interface modules so they cannot knock against the dashboard. Avoid excessively tight cable ties that compress wires or place strain at the connector. Leave enough service loop to remove the display later without pulling directly on a plug.

Power-up is the beginning of testing, not the end

When the basic connections are complete and the vehicle is safe to power, perform the first test with the assembly supported. Do not hold a heavy screen by its cables. Confirm startup and shutdown behavior, then check the functions relevant to the order. These may include audio, left-right balance, front-rear fade, steering-wheel buttons, microphone, Bluetooth, phone projection, USB, radio reception, camera behavior, and any supported factory display or control.

Test the camera under controlled stationary conditions. Verify orientation and trigger behavior without assuming a demonstration image proves compatibility. If the Jeep uses a factory amplifier, verify that audio is present on all expected channels and that volume behavior is normal. If a steering-wheel button performs the wrong action, confirm the interface and settings before assuming the button itself is faulty.

Allow the system to sleep and wake according to the product instructions where practical. Some issues appear only after an ignition cycle. Check that the unit turns off as intended and does not remain powered unexpectedly. If a function is missing, document the screen, connection, and setting. Randomly changing several settings at once makes the result harder to diagnose.

Fit the assembly without forcing the dashboard

Before final installation, look into the opening and identify where the harness and modules will rest. Position them so the display body has a clear path. Move the assembly slowly toward the dashboard while watching for cable movement. If it stops early, pull it forward and inspect. Do not use mounting screws to draw a misaligned screen into place.

Check the fascia perimeter and clip alignment. A gap on one corner can indicate a trapped cable, an unseated transferred vent, a clip that missed its opening, or a bracket that is not square. Correct the cause rather than pressing harder. After fasteners are installed to the appropriate tension, operate nearby vents, climate controls, hazard switches, and other physical controls to confirm they move freely.

Repeat essential function tests after final mounting. Cable position changes when the assembly moves into the dashboard. A connection that worked while the screen was supported may loosen if the harness is under tension. The final test should occur before every decorative panel is locked in place, so the installer can still access the connections without repeating the full removal process.

Common mistakes visible only after the excitement wears off

Ordering from year alone

Model-year fitment is important, but it does not describe trim, amplifier, camera, region, or previous modifications. Use the product page and a configuration review together.

Mixing Wrangler and Cherokee expectations

They are separate vehicle platforms with different center stacks and product packages. A shared feature name does not make their hardware interchangeable.

Closing the dashboard before testing

A beautiful final fit is not useful if the microphone, camera, or one audio channel is missing. Test first, mount carefully, and test again.

Forcing a connector or fascia

Vehicle-specific parts should align through the intended path. Resistance is information. Stop, inspect, and identify the cause before a plastic tab, terminal, or screen is damaged.

Assuming every original function is automatically retained

Retention depends on the supported product, vehicle configuration, interface, and installation. List the functions that matter before ordering and confirm them individually.

A practical photo checklist for support

If you want ZENHAX to review a Jeep configuration, send one complete dashboard photo taken from between the front seats, one closer front view of the original radio and controls, the vehicle year and trim, the steering position, factory-amplifier information, and camera information. If the radio is already removed, add clear photos of every original connector without hiding the wire colors or lock shape. Include details of aftermarket audio equipment.

Use good daylight or a work light, hold the camera steady, and avoid extreme close-ups that remove context. A useful connector photo shows the front face, side keying, wire entry, and nearby labels. Do not disconnect airbag or safety connectors merely to take a photograph.

Send the information to service@zenhax.email with the product link you are considering. The answer should identify what can be confirmed from the evidence and what remains dependent on the vehicle or installer. A precise limitation is better than an unsupported promise.

Build a function-retention list before buying

Owners often describe the goal as “keep everything,” but that phrase is too broad to guide a fitment review. Write down the functions that are actually present in the vehicle and the ones that matter after the upgrade. A useful list might include steering-wheel volume and track buttons, factory amplifier operation, original reverse-camera display, parking guidelines, door or vehicle information, USB charging, USB data, factory microphone, satellite radio, and any separate audio accessories. The list must reflect the individual Jeep rather than a generic brochure.

Then compare that list with the exact product page and the confirmed configuration. Some functions may be supported through the included interface, some may require a setting or an additional connection, and some factory components may not transfer. The word “support” should not be stretched to mean that every trim and every previous modification behaves identically. When a feature is essential, ask for written confirmation based on the vehicle details before installation begins.

This preparation also makes testing more disciplined. Instead of turning on the screen and deciding that the job is finished, the installer can work through a defined checklist. Each item should be marked as working, not present on the vehicle, not part of the order, or requiring follow-up. A checklist prevents a missing function from being discovered after the trim is fully reassembled and the tools are packed away.

Audio testing needs more than one song

A quick burst of music confirms that some sound exists; it does not prove that the audio path is correct. Use a familiar, clean source and check each speaker position with balance and fade controls. Listen at low and moderate volume for distortion, intermittent output, unusual hiss, or a channel that is quieter than the others. If the Jeep has a factory amplifier or aftermarket audio equipment, include that information in the fitment review and confirm how the new unit is expected to connect.

Test more than one source. Radio reception, Bluetooth audio, phone projection, and a local file can use different paths or settings. A problem that appears only in one source may not be a speaker or amplifier failure. Keep volume conservative during the first test and do not use loudness or heavy equalization to hide a weak channel. Begin with neutral settings so the underlying connection can be evaluated.

Microphone testing deserves the same care. Place a stationary call in a quiet location, speak from the normal driving position, and ask the other person about clarity and background noise. If an external microphone is supplied and appropriate for the installation, route it away from air vents and loose trim. Do not run its cable across an airbag deployment path. A microphone that works while hanging beside the screen may perform differently after it is hidden behind a noisy vent or placed far from the driver.

Phone projection and wireless behavior

Wireless CarPlay or Android Auto can make the upgraded system feel integrated, but the first pairing should be treated as a controlled setup. Remove obsolete pairings if necessary, confirm Bluetooth and Wi-Fi permissions on the phone, and follow the product instructions. Use a compatible phone with current software and record the phone model when reporting a problem. Testing several unknown phones at once can create more confusion than useful evidence.

After pairing, check a call, music playback, navigation audio, voice assistance, and reconnection after an ignition cycle. If wired projection is part of the intended setup, use a known-good data cable rather than a charging-only cable. Confirm which USB lead is intended for data and which is intended only for power or accessories. A USB extension placed where it can be pinched by the glove box or console may work during installation and fail later.

Wireless performance also depends on the phone, radio environment, and antenna placement. Do not bury wireless antennas behind metal structures or bundle them tightly with noisy power wiring unless the instructions specify that location. If a connection drops, document when it happens, which application was active, and whether wired operation remains stable. Those details are more useful than the statement “wireless does not work.”

Camera verification should be done safely

A reverse-camera image is a parking aid, not a substitute for direct observation. Test it in a controlled area with the vehicle stationary and a second person assisting when needed. Confirm that the display switches at the expected time, the image orientation is correct, and the picture remains stable. Guidelines shown on the screen may be fixed or may depend on supported vehicle data; never assume their position represents the exact path of the vehicle without verification.

Factory-camera retention varies with the original camera, signal type, voltage, interface, and trim. An aftermarket camera introduces its own power and routing requirements. Do not apply power based only on wire color. Follow the vehicle and product instructions, and use qualified measurement methods where diagnosis is necessary. Connecting the wrong voltage can damage a camera that was previously working.

If the camera fails, record whether the screen switches to camera mode, whether it shows a blank image or a “no signal” message, and whether the failure is constant or intermittent. Those observations separate a trigger problem from a video-signal or camera-power problem. Photograph the relevant labeled connections before changing them.

Document the installation for future service

A good installation record protects both the owner and the installer. Save the product name, order number, vehicle year and trim, original radio photos, connector photos, interface labels, and a final dashboard image. Note which factory features were present and which were confirmed after installation. If a setting was changed for the camera, amplifier, steering-wheel controls, or vehicle profile, record it.

Do not publish photographs that expose personal information, addresses, license plates, phone notifications, or customer contacts. For private support, share only the images needed to diagnose the issue. If a future technician opens the dashboard, an organized record can prevent them from treating a correct interface box as an unknown aftermarket device.

The record is especially valuable in a modified Wrangler. Auxiliary switches, amplifiers, lighting controllers, radios, and charging accessories may already occupy space or share power paths. The infotainment installation should not be blamed automatically for an unrelated modification, and an existing modification should not be disturbed without understanding it. A before-and-after record creates a clear boundary.

A responsible handover after installation

Before the vehicle leaves the work area, clean fingerprints from the screen with an appropriate cloth, remove tools from the cabin, count fasteners, and check that every removed trim piece is secure. Confirm that vents, climate controls, hazard controls, and nearby storage areas operate normally. Look for warning indicators and address them according to proper service information rather than clearing them without understanding the cause.

Show the owner how to connect a phone, return to the main interface, adjust audio, open the camera view if supported, and restart the unit using the documented method. Explain which USB port carries data, where the microphone is located, and which functions depend on the phone. Avoid promising that every application or future phone update will behave identically.

Finally, provide the product link, installation record, and support address. If an issue appears later, the owner should describe the exact symptom, when it occurs, and the steps already tried. Jason’s preferred support habit is simple: collect enough evidence to reproduce the problem before recommending a change. That saves customers from repeatedly opening the dashboard and gives the technical team a better chance of identifying the real cause.

The real value of a vehicle-specific Jeep upgrade

The strongest result is not simply a larger screen. It is a center stack that fits the dashboard, uses the intended electrical path, preserves the confirmed functions, keeps wiring serviceable, and can be supported after installation. The Jeep videos show that the transformation is achievable, but they also reveal the work behind it: controlled trim removal, component handling, harness organization, screen support, and final fit.

Choose the product by the complete vehicle configuration. Prepare the workspace before the first panel moves. Connect only what you understand. Test before final assembly. When those habits guide the job, "plug and play" becomes a useful description of a matched installation path instead of an excuse to skip verification.
