Ford F-150 Infotainment Upgrades: Why Bench Testing and Trim-Level Verification Matter

A vehicle-specific Ford F-150 infotainment upgrade has to succeed in two different environments. First, the display, fascia, harness, and interface must be prepared and tested as an assembly. Second, that assembly must match the exact truck and operate correctly after it is installed. Bench testing can reveal important problems early, but it cannot reproduce every factory option, connector, network message, amplifier, camera, or physical condition inside a customer's vehicle.

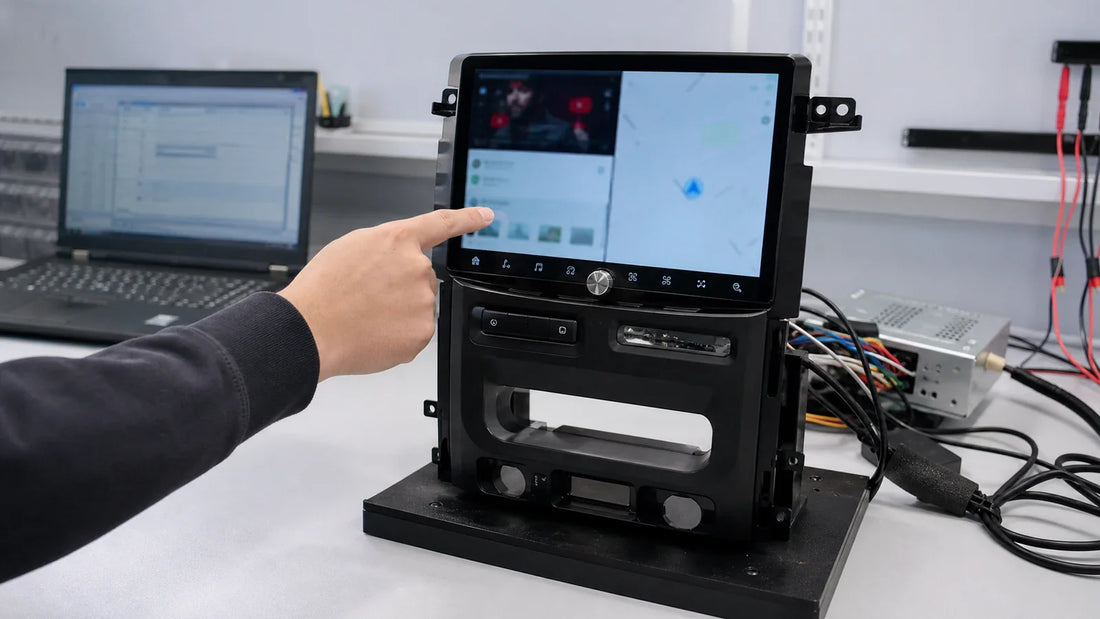

The ZENHAX footage reviewed for this article includes hands-on function testing of a Ford F-150-style infotainment assembly on a workbench. The fascia and display are supported while the tester powers the system, uses the interface, and checks the prepared assembly. That is useful evidence of a quality-control stage. It should not be described as an in-vehicle installation, and it should not be treated as proof that an unidentified F-150 configuration will retain every original feature.

The current ZENHAX product page used in this guide is listed for Ford F-150 2009-2012. Its description identifies a vehicle-specific display and integration package for the supported configuration. Before ordering, customers must compare the actual truck, original radio, center stack, audio system, climate-control layout, camera equipment, steering-wheel controls, and previous modifications with the current listing.

This is a planning and quality-control guide, not a substitute for the instructions supplied with the product or reliable vehicle service information. Work around airbags, electrical systems, and factory modules only with appropriate training. If you cannot identify a connector or safely remove the center stack, use a qualified automotive installer.

What bench testing can prove

A controlled bench allows the team to inspect the assembly before it is surrounded by dashboard trim. The display can be checked for visible shipping damage, the fascia can be examined for manufacturing defects, and the primary connectors can be seated where they remain visible. When appropriate test equipment is available, the unit can be powered and its basic interface, touch response, audio output path, and selected inputs can be checked.

Bench testing can also reveal an incorrectly prepared harness, a loose connector, a display that does not start, a touch area that does not respond, or an assembly problem that would be much harder to reach after mounting. Cable routing can be reviewed, modules can be identified, and labels can be photographed. A tester can confirm that the prepared parts correspond to the intended order before packaging or installation.

The most important value is repeatability. A defined sequence produces comparable results across assemblies. The technician does not simply tap random icons until the screen looks active. The order, product identifier, physical condition, startup behavior, interface response, and relevant outputs are recorded. If something fails, the same sequence can be repeated after correction.

Jason describes this stage as a gate, not a celebration. Passing a bench test means the assembly is ready for the next verification step. It does not mean the customer's truck has already been tested. That honest boundary makes quality control more useful because each claim remains tied to the evidence that actually supports it.

What bench testing cannot prove

A workbench does not contain the customer's factory amplifier, steering-wheel controls, reverse camera, antenna, original USB hub, climate-control system, or every vehicle data signal. A simulated input can show that a function responds under test conditions, but it cannot confirm the exact behavior of equipment that is not present. The final installation must include a vehicle-level function check.

Bench testing also cannot prove mechanical fit inside a truck that has not been inspected. A fascia may match the intended design while the customer's dashboard belongs to a different configuration or has been modified. The space behind the radio can contain aftermarket modules, spliced harnesses, or accessories that change the installation path.

Wireless behavior on a bench does not represent every phone, software version, radio environment, or antenna position. Camera testing with a known source does not prove compatibility with an unknown factory camera. Audio output into test equipment does not confirm factory-amplifier integration. These limitations are not weaknesses in the test; they define why the test must be followed by proper fitment review and in-vehicle verification.

The current Ford F-150 2009-2012 product path

The live ZENHAX listing describes an 11.5-inch vehicle-specific infotainment system for Ford F-150 2009-2012. The page presents the screen, Android platform, phone connectivity, audio features, camera-related capability, and supported retention or integration functions. Those specifications belong to the supported product configuration. They do not establish that every truck in the year range has identical factory equipment.

The product is more than a display. The fascia around the screen, mounting structure, harness, and interface form one installation path. The dashboard opening, vents, climate controls, factory buttons, brackets, and connector layout all affect whether the system fits and functions. Another display with a similar diagonal measurement is not automatically interchangeable.

Review the live page at the time of purchase because package contents, availability, and documentation can change. Confirm which harness, interface, antenna connection, microphone, USB leads, and camera inputs are included. When a feature is essential, ask how it applies to the exact truck rather than relying on a generic feature icon.

Describe the exact F-150 before ordering

Record the model year, trim, cab configuration, region, steering position, original radio appearance, climate-control layout, premium-audio branding, factory amplifier, steering-wheel controls, camera equipment, and any previous electrical work. Include the full vehicle identification details requested by fitment support, but do not publish private vehicle or customer data in a public review or comment.

Take one complete dashboard photograph from between the seats and one straight-on close view of the radio, vents, and climate controls. Add clear images of any factory branding and previous aftermarket equipment. A tight image of only the screen opening can hide the very control or fascia difference that determines compatibility.

If the original radio has already been removed, photograph every vehicle-side connector with good lighting. Show the connector face, side keying, lock mechanism, wire entry, and nearby labels. Do not disconnect airbag or safety-system connectors for a photograph. If wiring has been cut or adapted, provide an overview before touching it so support can distinguish factory wiring from a previous installation.

Fitment should be confirmed against the current product page and the evidence from the truck. A year-range match is necessary but may not be sufficient. The factory amplifier, camera type, climate arrangement, and regional equipment can change the integration path even when the outer dashboard looks similar.

Incoming inspection before power is applied

A disciplined bench process begins with the package and order, not the power button. Verify the product identifier and intended vehicle application. Inspect the shipping carton, display glass, housing, fascia, mounting points, connector pins, cable insulation, and interface modules. Look for cracks, bent terminals, loose fasteners, or evidence that a cable was compressed during shipping.

Compare the package with the current contents list and preparation record. Lay each component on a clean, static-conscious, padded surface. Keep screws and brackets organized. Do not place the display face-down on loose hardware or slide a glossy fascia across a dirty bench.

Read labels before making connections. A similar plug is not proof of the same signal path. Verify keying, pin count, documentation, and the intended direction between vehicle-side harness, interface, and head unit. Do not force a connector, shave a key, move terminals, or apply power based only on wire color.

Photograph the assembly before testing. A useful record includes the product identifier, harness layout, interface labels, display condition, and any transferred controls or brackets. If a later problem is reported, the record helps determine whether the assembly changed between preparation, shipping, and installation.

Create a defined bench-test sequence

The sequence should be appropriate for the product and authorized test equipment. It can begin with visual inspection and continuity or connection checks defined by the work instruction, followed by controlled power-up. Use the correct supply, protection, and connector path. Automotive electronics can be damaged by reversed polarity, incorrect voltage, unstable test leads, or an improvised power source.

At startup, observe whether the display powers normally, whether the boot process completes, and whether the interface remains stable. Check touch response across the usable screen rather than tapping only the center. Inspect brightness, obvious display defects, and physical buttons or knobs included in the assembly. Record the result rather than relying on memory.

Open relevant settings and verify that the prepared vehicle profile or product configuration matches the work order when the instructions require it. Do not change hidden or engineering settings merely to explore. A setting can influence camera trigger, amplifier behavior, steering-wheel controls, climate display, or sleep behavior, and undocumented changes make later diagnosis difficult.

Where the bench equipment supports it, test audio output, microphone input, USB data, Bluetooth pairing, wireless networking, and camera or trigger inputs under controlled conditions. Label the result as a bench result. For example, “camera input displayed a known test source” is accurate; “the customer's factory camera is retained” would require the actual truck and confirmed integration.

Why startup and shutdown both matter

A unit that starts once has not completed a meaningful power test. Observe behavior through the applicable startup, shutdown, and restart sequence. Confirm that the interface does not freeze, reboot unexpectedly, or remain in an obviously abnormal state. Where the procedure includes sleep and wake testing, follow the documented timing rather than disconnecting power randomly.

Vehicle power behavior includes accessory, ignition, retained accessory power, and data-controlled conditions that a basic bench may not reproduce. That is another reason the installed truck must be tested. After installation, confirm that the system wakes and shuts down as intended and does not remain active unexpectedly.

If the unit behaves differently after an ignition cycle, record exactly what changed. Note whether audio, phone pairing, vehicle profile, clock, or camera settings were retained. A repeatable symptom tied to power state is more useful than a general report that the screen “sometimes resets.”

Audio testing: bench evidence and vehicle evidence

On the bench, the team can confirm the output path available to the test setup and listen for obvious distortion or missing channels. In the truck, the installer must test the actual speakers, factory amplifier if present, balance, fade, and source behavior. The two stages answer different questions and should both be recorded.

Begin vehicle audio testing with neutral equalizer settings and conservative volume. Use balance and fade to check each expected speaker position. Listen for a missing channel, weak output, noise, distortion, excessive minimum volume, or a startup pop. If the truck uses a factory amplifier, verify that the product and interface are configured for that system.

Test radio, Bluetooth, phone projection, and local media where applicable. A symptom limited to one source may be caused by a phone, application, cable, input setting, or antenna path rather than the vehicle amplifier. Record the source and conditions that reproduce the problem.

Climate controls and factory information

The center stack can contain or display information beyond entertainment. Depending on the supported F-150 configuration, the product page may describe climate display, steering-wheel functions, factory amplifier integration, or other retained features. Confirm which items apply to the exact truck and which require the included interface or a specific setting.

After installation, operate every physical climate control that was removed, transferred, or surrounded by the new fascia. Confirm that knobs and buttons move freely and that the expected vehicle response occurs. A beautiful screen does not compensate for a pinched control connector or a fascia that interferes with a button.

If climate information is expected on the display, check it against the actual physical control changes. Do not judge it from a static icon. Test several safe settings while stationary and record any delay or mismatch. Never experiment with undocumented vehicle profiles in an attempt to make an unsupported display appear.

Steering-wheel controls need a button-by-button test

If retention is part of the supported configuration, test each steering-wheel button while the truck is stationary. Volume, track, mode, voice, and phone functions may depend on the correct interface and vehicle profile. Mark each required button as confirmed, not present, outside the supported set, or requiring follow-up.

A wrong action can point to configuration or mapping rather than a damaged button. Review the documented setup before remapping. Do not assign a safety-sensitive or distracting action simply because the interface allows customization. Repeat the test after an ignition cycle to confirm that the result is retained.

Phone projection and microphone checks

Pair one compatible phone at a time using the documented sequence. For wireless CarPlay or Android Auto, confirm the required Bluetooth and Wi-Fi permissions. Test music, navigation prompts, a stationary call, voice assistance, and automatic reconnection after a power cycle. Record the phone model and software version when reporting an issue.

For wired projection, use a known-good data cable. A charging-only cable may power the phone but never start projection. Identify the correct USB data lead and route it where the glove box, console, and trim cannot pinch it. Test the extension after it is placed in its final location.

Place an external microphone, when supplied and appropriate, away from direct vent noise and moving trim. Never route its cable across an airbag deployment path. Make a stationary call from the normal driving position and ask the other person to evaluate clarity. A microphone tested beside the open dashboard may sound different after final placement.

Camera testing without unsafe assumptions

A bench can show that the display accepts a known video source or responds to a simulated trigger when the approved procedure supports that test. It cannot prove that the truck's original camera has the same signal, voltage, connector, or trigger behavior. Confirm the factory or aftermarket camera configuration before installation.

Test the installed camera in a controlled area with the truck stationary and an assistant when needed. Confirm the display switches at the expected time, the image is stable, and its orientation is correct. On-screen guidelines may be fixed or may depend on supported vehicle data; they are not a substitute for mirrors, direct observation, or safe driving.

If the camera fails, record whether the screen changes modes, whether it reports no signal, and whether the image is intermittent. These observations help separate trigger, video, and camera-power problems. Never apply voltage based only on a wire color or internet guess.

Plan the harness position before mounting

The F-150 dashboard opening has finite space, and a larger display assembly may occupy volume that previously held part of the original harness. Before moving the screen into place, identify protected cavities for interface modules and cable loops. Keep wiring away from sharp edges, screws, air ducts, control mechanisms, and heat sources.

Do not create one dense bundle directly behind the deepest part of the screen. Use natural loops and leave enough service length to support the display during future removal. Secure modules against rattling without overtightening cable ties or hiding labels. A serviceable installation is easier to diagnose and less likely to place strain on connectors.

Move the assembly slowly into the opening while observing cable movement. If it stops, pull it forward and inspect. Do not use screws to draw a misaligned fascia into place. A trapped module, missed locating tab, transferred component, or folded cable is a cause to correct, not an obstacle to overpower.

Final in-vehicle validation

Test essential functions while the assembly is supported, then repeat the test after it is mounted and before every decorative panel is locked. Cable position changes during installation. A connector that works in open space may loosen if the harness is stretched or compressed behind the screen.

Confirm startup and shutdown, touch response, each audio channel, steering-wheel controls, microphone, Bluetooth, phone projection, USB data and charging, radio reception, supported climate or vehicle information, and camera behavior. Test only features present in the truck and included in the supported configuration. Use a written checklist so excitement about the display does not hide an untested function.

Operate nearby vents, climate controls, hazard switches, and storage areas. Inspect the fascia perimeter for consistent gaps. Listen for a loose module or trim rattle. Look for warning indicators and diagnose them correctly rather than clearing them to obtain a clean photograph.

Build a traceable quality record

The final record should connect the prepared assembly to the installed truck. Save the order number, product identifier, vehicle details, before-and-after dashboard photographs, original connector images, interface labels, bench-test result, vehicle-test checklist, and relevant settings. Record any known aftermarket audio, camera, or accessory equipment.

Protect customer privacy. Do not publish addresses, phone notifications, vehicle identification numbers, license plates, or personal contacts. For support, share only the information needed to identify the order, configuration, and symptom through an appropriate channel.

A traceable record prevents several common misunderstandings. It shows whether the correct product was prepared, whether the harness changed after testing, which functions were confirmed in the actual truck, and which features were never present. If the system is serviced later, the next technician does not have to begin with an undocumented dashboard.

Troubleshooting with evidence

Describe a problem in terms that can be reproduced. “It does not work” is not enough. A useful report might say: “The display starts and Bluetooth audio plays, but there is no sound from the rear speakers on any source,” or “The camera screen appears in reverse but reports no signal.” Include when the symptom occurs and which related functions still work.

Check documented basics first: fully seated connectors, correct input, mute and balance settings, phone permissions, data cable, and applicable vehicle profile. Change one item at a time and repeat the same test. Moving several connections and settings at once destroys the comparison and can create a second fault.

Provide an overview photograph plus focused images of the suspected path. Show connector locks, labels, interface modules, and relevant settings. A short video can demonstrate an intermittent symptom, but it should show the action and result clearly. Do not send unrelated personal footage.

Contact service@zenhax.email with the product link, order information, truck configuration, symptom, completed tests, and photographs. Preserve the harness in its documented state while waiting for guidance. Cutting or repinning wires without authorized instructions can remove the evidence needed to determine the cause.

Common misconceptions about a tested F-150 unit

“It powered on, so every vehicle function is confirmed”

Power-up confirms only part of the assembly. The truck's amplifier, steering-wheel controls, camera, climate system, and data network require configuration-specific validation.

“The year is listed, so trim does not matter”

The year range narrows the application, but factory equipment and previous modifications still influence fitment and retention.

“A large screen can use any fascia”

Screen size does not define mounting points, control placement, vent clearance, connector path, or dashboard contour. The fascia is part of the engineered system.

“If a connector fits, it is correct”

Similar housings can carry different signals. Verify keying, pin count, labels, and documentation. Never force or modify a plug to make it connect.

“Testing ends when the trim closes”

Essential functions must be checked again after mounting because cable position changes. The handover should also document what was tested and how the owner can request support.

A practical pre-order checklist

• Exact Ford F-150 model year, trim, region, and steering position.
• Full dashboard and straight-on center-stack photographs.
• Original radio and climate-control configuration.
• Factory amplifier, premium-audio, and speaker information.
• Factory or aftermarket reverse-camera details.
• Required steering-wheel, climate, camera, USB, and phone functions.
• Photographs and description of previous radio or wiring work.
• The exact current ZENHAX product link.

Send complete information rather than a guess. If an item cannot be identified safely, say so and ask whether another photograph or professional inspection is needed. The purpose of fitment support is to establish what is confirmed, what depends on installation, and what remains unknown before the dashboard is opened.

A responsible customer handover

After installation, clean the display with an appropriate cloth, secure the trim, count fasteners and tools, and confirm that no module can move freely. Demonstrate phone pairing, audio controls, the supported camera behavior, USB connections, and the documented restart method. Explain which functions depend on the phone or vehicle configuration.

Give the owner the product link, order record, completed checklist, and support address. Avoid promising that every future phone or application update will behave exactly like the tested setup. The honest handover states what was verified today and provides a clear process for reporting a later issue.

Quality control is a chain, not a single screen

The Ford F-150 bench footage shows a useful part of the ZENHAX process: a prepared assembly is supported, powered, and checked before it reaches the final dashboard. The real standard is the full chain. The product must correspond to the order, pass appropriate incoming and bench checks, match the exact truck, install without forced mechanical changes, and pass an in-vehicle function checklist.

Bench testing reduces uncertainty; fitment evidence reduces mismatch; careful installation protects the truck; final validation confirms the functions that matter. When every stage records what it actually proves, a vehicle-specific infotainment upgrade becomes easier to support and far less dependent on assumptions.
