How We Installed a 12.1-Inch Vertical Screen in a 2021 Chevrolet Silverado

Vehicle documented: 2021 Chevrolet Silverado
Upgrade shown: ZENHAX 12.1-inch vertical screen assembly
Article scope: Real removal, harness connection, test-fit and reassembly workflow

A large vertical display can make the center of a Chevrolet Silverado feel completely different, but the screen is only the most visible part of the job. A reliable installation depends on the work behind it: protecting the interior, releasing the trim in the correct order, documenting every factory connector, matching the vehicle-specific harness, routing cables so that they cannot be pinched, and testing the system before the dashboard is closed.

This article follows a real installation performed in a 2021 Chevrolet Silverado. The finished video runs for more than thirteen minutes and shows the center-console trim being removed, the factory center assembly being lifted and disconnected, the ZENHAX harness being matched to the truck, the new unit being connected, and the dashboard being reassembled. Jason wanted the written guide to explain not only what the finished screen looks like, but also why each stage matters. The result is a practical companion to the video rather than a generic list of instructions.

What makes this installation vehicle-specific?

A modern Silverado center stack is not simply a radio opening surrounded by decorative trim. The visible assembly is connected to vehicle wiring, physical controls, data communication and, depending on the truck, equipment such as a factory amplifier, camera, steering-wheel controls and connected-service functions. For that reason, two trucks that look similar in a listing photo can require different interfaces or harness arrangements.

The current ZENHAX Silverado 12.1-inch product family provides useful reference points for the hardware format. Listed configurations include an octa-core platform, 4 GB + 64 GB and 8 GB + 128 GB memory/storage options, a 1024 × 768 vertical display, wireless CarPlay and Android Auto, GPS navigation, radio, a 4 × 49 W amplifier specification and 36-band equalizer adjustment. The package and retention interface used for a 2019–2023 truck must still be confirmed separately because the harness, amplifier integration and retained functions can vary from the currently listed 2014–2018 product package.

In other words, the screen specification describes the user-facing hardware; the vehicle-specific integration package determines whether the installation belongs in that truck. A correct order should match both.

Before touching the dashboard: collect the right information

The fastest way to avoid an installation problem is to confirm the truck before parts are opened or panels are removed. Record the VIN, model year and trim, then take a straight-on photograph of the complete factory dashboard while the original system is powered. Photograph any factory audio badges and note whether the truck has an amplified audio system. If the vehicle has factory cameras, steering-wheel audio controls, connected services or other functions that the owner expects to retain, include those details in the fitment request.

It is also worth recording the original system settings. Pairing information, favorite radio stations and sound settings may not transfer. If the factory screen shows vehicle-setting menus, photograph them before disassembly. These reference photos help with post-install testing and make it easier to distinguish a configuration question from a new installation issue.

Preparation checklist

• Confirm the truck as a 2019–2023-generation Chevrolet Silverado configuration and verify the exact dashboard.
• Identify the factory audio system and whether an amplifier-retention interface is required.
• Confirm the functions that must be retained, rather than assuming every trim uses the same connections.
• Read the product-specific wiring information supplied with the selected kit.
• Use plastic trim tools, suitable hand tools, protective cloths and containers for fasteners.
• Follow the vehicle manufacturer's service and battery-disconnection procedure before working on the electrical system.
• Keep the original parts and fasteners organized so the truck can be returned to factory condition if troubleshooting is required.

Stage 1: protect the cabin and open the lower center area

The video begins at the lower center stack and console area. This is intentional: the upper factory assembly cannot be pulled safely while the surrounding lower trim is still holding it in place. The technician first creates working room around the storage and cupholder area, then releases the lower side pieces and center-console trim in a controlled sequence.

Use plastic trim tools rather than a metal screwdriver against visible surfaces. Work close to the retention clip instead of flexing a large section of trim from the far edge. When a panel starts to move, stop and check for hidden wiring before lifting it away. USB ports, auxiliary connections, switches or accessory outlets can remain attached underneath even after the visible clips have released.

The real footage shows why photographs are more useful than memory. Several clips, brackets and connector locations become visible as the lower trim moves. Take a quick photo after every layer. If two fasteners have different lengths, keep them in separate labeled containers. A clean removal sequence reduces the chance of scratches, rattles and misplaced hardware when the truck is reassembled.

Stage 2: release the factory center assembly

Once the lower area is open, the technician removes the fasteners and releases the center assembly. This is not a step to rush. The assembly is large, but it is still connected to multiple factory plugs. Pulling it forward without support can strain a connector or let the panel contact the console.

Support the assembly with one hand while checking the top, sides and lower edge for anything that still holds it. If a section refuses to move, do not increase force automatically. Recheck the fasteners and overlapping trim. A panel that is moving evenly will usually give a clearer indication of where the remaining attachment is located.

After the assembly is lifted forward, create enough space to reach the connector locks. The footage shows the technician working through the factory plugs one by one instead of pulling the entire bundle. Connector locks should be released at the housing. Pulling on the wire can damage a terminal that may look normal until intermittent faults appear later.

Make a connector map before installing the new system

Lay the removed assembly in a protected position and compare every factory plug with the supplied vehicle harness. A simple connector map can save substantial troubleshooting time. Record connector color, shape, locking tab position and original location. Do not treat color alone as proof of a match. The connector must be keyed correctly and must seat without cutting or modifying the factory plug.

If the supplied package includes separate leads for USB, antenna, camera, microphone, steering-wheel controls or an amplifier interface, identify each lead before connecting anything. Unused optional connectors should be insulated and secured; they should not be left where they can rattle against the dashboard or interfere with the new assembly.

Stage 3: match the vehicle harness and build the connection path

The longest part of the video is the harness stage. That is realistic. A good installation is not measured by how quickly the dashboard can be opened; it is measured by whether the connector path is correct, strain-free and serviceable after the screen is installed.

The technician matches the vehicle-side connectors, then connects the corresponding ZENHAX harness and interface modules. Keyed connectors should align naturally. If a plug requires unusual force, stop and check the keying and orientation. A connector that is only partly seated can power the display while still causing missing audio, camera or control functions.

Organize the harness into functional groups. Keep the main power/data connection together, route USB extensions toward their intended accessible location, and keep signal cables away from sharp brackets and high-current wiring where practical. If the configuration uses an external amplifier or data interface, secure the module on a stable surface with enough room for ventilation and future service access.

The ZENHAX 12.1-inch platform can support wireless CarPlay and Android Auto, navigation, radio and audio tuning, but software features do not replace the physical vehicle interface. For example, retaining a factory amplifier or factory camera may require the correct configuration-specific interface and settings. The presence of an app icon on the screen does not prove that every truck-side function has been connected.

Stage 4: connect the main unit—but do not fully install it yet

After the vehicle harness is built, connect it to the 12.1-inch main unit while the unit is still supported outside the dashboard. Attach the required antenna, USB, microphone, camera and other selected leads according to the package instructions. Check that connector locks are closed and that no terminal has backed out of a housing.

Before pushing the screen into the opening, review the cable path from above and below. Large vertical assemblies occupy significant space, and a cable that sits in the wrong location can be trapped behind the chassis. Pinched cables may create a short immediately, but they can also fail later after vibration and temperature changes. Bundle excess length neatly without making a tight coil directly behind a connector.

Stage 5: power up and test before reassembly

A pre-fit test is one of the most valuable steps in the entire installation. Restore power according to the correct service procedure, then allow the system to start while the assembly is still accessible. Do not evaluate only whether the display lights up. Work through a written checklist based on the specific truck and selected interface.

Recommended pre-fit test checklist

• Display starts consistently and responds to touch across the full screen.
• Radio produces sound from all expected speaker channels.
• Volume and mute controls work from both the screen and any supported physical controls.
• Steering-wheel controls respond if the selected configuration supports them.
• Wireless CarPlay and Android Auto pair and reconnect correctly.
• GPS receives a position after the antenna has a clear installation location.
• Factory and/or aftermarket camera image appears in the expected condition, if supported and connected.
• Climate and vehicle settings that are part of the selected integration respond correctly.
• USB ports charge and transfer data according to their intended purpose.
• The vehicle starts normally and no new warning message remains after the configured system initializes.

If one function fails, do not close the dashboard and hope that a reset will solve it. Compare the failed function with the harness map. Check connector seating, configuration switches or settings, and whether the truck requires an additional interface. Test one change at a time so the cause remains clear.

Stage 6: seat the assembly and refit the center console

When the pre-fit tests pass, turn the system off and arrange the harness into the available cavities. The footage shows the new center assembly being guided into place rather than forced straight backward. Watch the side edges, lower controls and air-vent areas while seating it. The fascia should approach the dashboard evenly.

If the assembly sits proud on one side, remove it and inspect the wiring path. A hidden connector or cable bundle is a more likely cause than an incorrectly shaped fascia. Forcing the fasteners to pull the panel flush can damage mounting points and place long-term stress on the screen housing.

Reinstall the original fasteners in their documented locations, then refit the lower trim and center-console pieces in the reverse removal order. Press close to each clip until it seats; do not strike the middle of a large panel. Check the gaps around the screen, vents, switch bank and console before declaring the mechanical work complete.

Post-install setup: make the system usable, not merely powered

After the trim is restored, repeat the essential function test with the engine running and the vehicle stationary in a safe location. Set the correct time zone, language and units. Pair the owner's phone, grant only the permissions required for calls, messages or navigation, and confirm that wireless CarPlay reconnects after a complete ignition cycle.

Adjust sound settings conservatively at first. The 36-band equalizer available in the 12.1-inch product family provides extensive control, but a dramatic curve can make the system sound impressive for one song and tiring for everyday driving. Begin with a flat or mild setting, balance and fade the system, then make small corrections based on the truck's speakers and factory amplifier configuration.

Check camera alignment and any parking guidelines in a safe area. Do not rely on an on-screen guide until its behavior has been verified for that exact camera/interface combination. Finally, listen for trim rattles on a short drive and recheck that the lower console pieces remain fully seated.

Common installation mistakes and how to avoid them

Ordering by model year and screen size only

“2021 Silverado” and “12.1-inch screen” are not enough to define the complete package. The factory audio system, camera, dashboard and expected retained functions matter. Send dashboard and factory-system details before ordering.

Pulling a factory connector by the wires

A wire can separate internally or a terminal can back out while the connector still looks intact. Release the lock and pull from the housing. Photograph difficult connectors before removal.

Connecting by color instead of keying

Connector colors can be helpful references, but shape, pin layout, lock position and package instructions determine the correct match. Never force similar-looking plugs together.

Skipping the pre-fit test

Closing the dashboard before testing turns a small connector check into a second complete disassembly. Verify sound, controls, phone integration and supported factory functions while the harness is still accessible.

Stuffing excess wire directly behind the screen

Excess cable can prevent the fascia from seating, strain connectors or create noise. Route and secure each group before the unit is installed.

Assuming every factory function is automatically retained

Retention depends on the vehicle configuration, the selected harness/interface and correct settings. Confirm requirements before ordering and test the functions that matter to the owner.

Frequently asked questions

Does this article prove that one 12.1-inch SKU fits every 2019–2023 Silverado?

No. It documents a successful 12.1-inch installation in the 2021 Silverado shown. The correct package must be selected using the exact truck configuration. Similar dashboards can still use different amplifier, camera or data-interface arrangements.

Can I retain Bose audio, OnStar or the factory camera?

These functions may be retained on supported configurations when the correct interface and wiring are selected, but support is not universal. Identify the factory equipment and confirm it with ZENHAX before ordering. Some configurations can require an additional amplifier or data interface.

How long does the installation take?

There is no responsible fixed time for every truck. Experience, vehicle condition, factory equipment, cable routing and troubleshooting all affect the job. Plan enough time to document the original system, protect the cabin, test every required function and correct any issue before reassembly.

Is cutting the factory wiring required?

The installation shown uses a matched vehicle harness. The goal is to connect through the supported factory connector path rather than modifying the original loom. If the supplied package does not clearly match the truck, stop and verify the configuration instead of cutting wires to make it fit.

What information should I send for a fitment check?

Send the model year, trim, VIN, a straight-on dashboard photo, factory-radio photo, factory audio/amp information and a list of functions you expect to retain. Mention the 12.1-inch vertical format and include any camera or connected-service requirements.

Final result

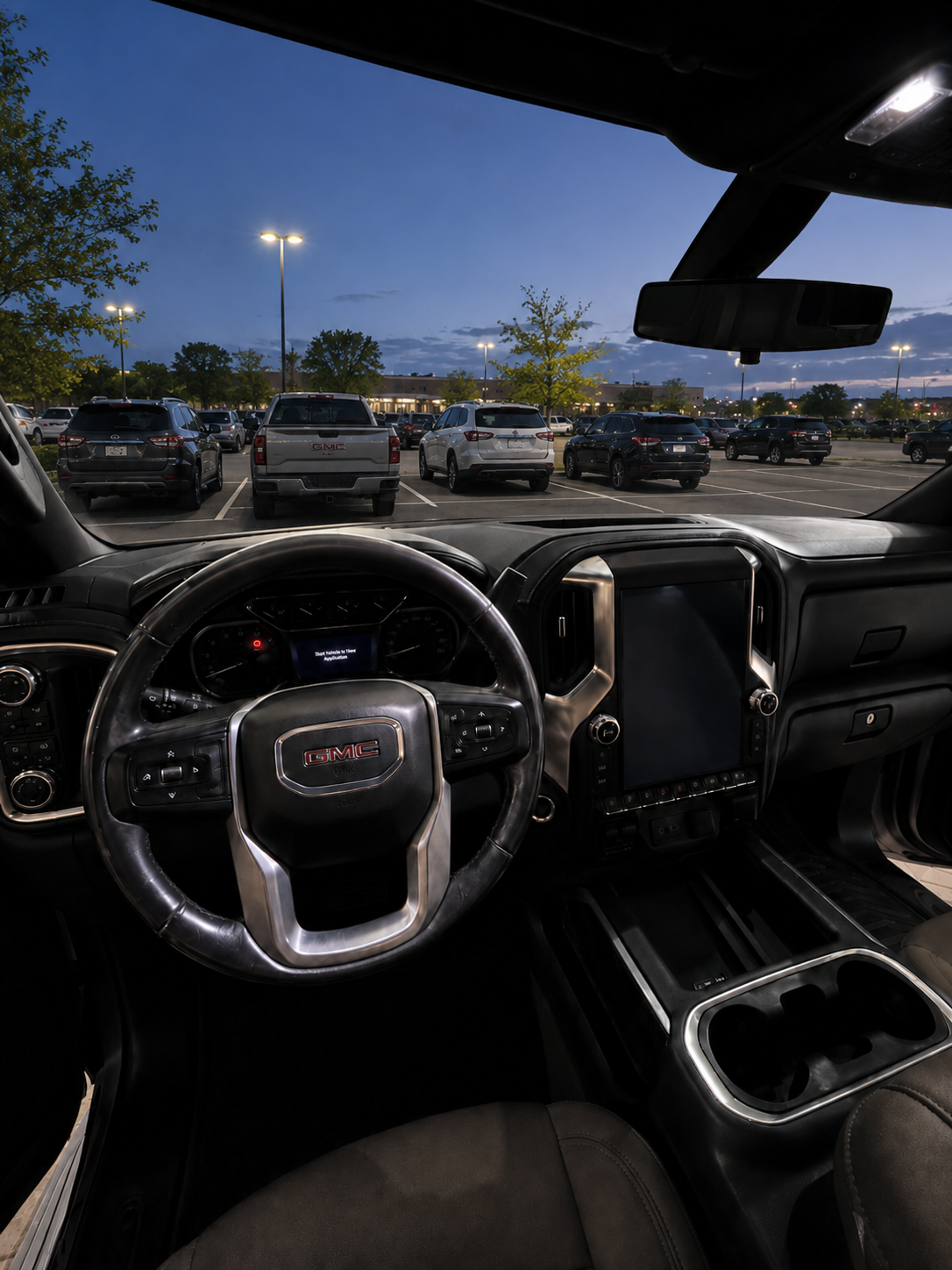

The finished 2021 Silverado places the 12.1-inch display at the center of the dashboard while keeping the surrounding center-stack layout recognizable. More importantly, the real installation demonstrates the work that should happen before the screen is visible: ordered trim removal, careful connector documentation, vehicle-specific harness matching, cable management and testing before the final panel is seated.

If you are planning a similar upgrade, use the installation video as a visual reference—not as proof that every truck uses the same package. Start with a fitment check, define the factory functions that matter, and select the screen and interface as one complete system.
